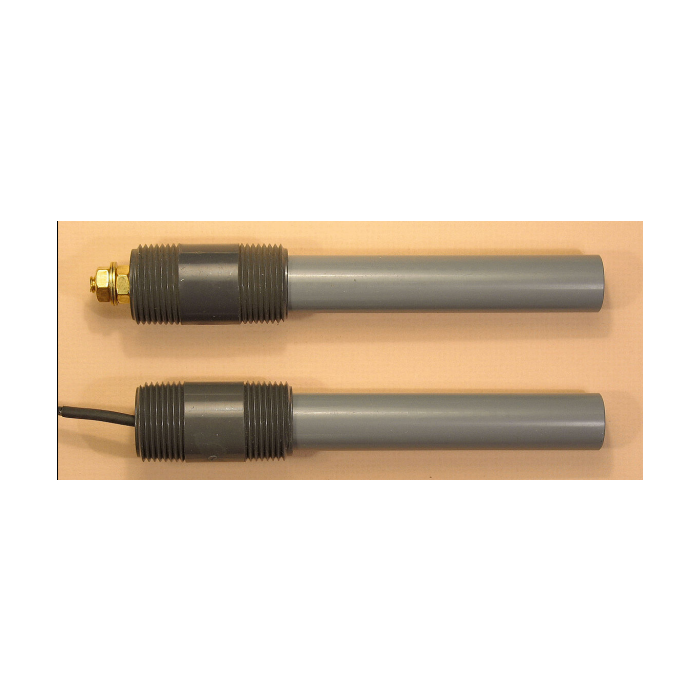

Model FS Through-Wall, Standard Probe Reference Electrode by EDI

Designed for 3/4" IPS Tapped Hole or Larger with a Reducer
  • Design Compatibility

    • Designed for 3/4" IPS tapped hole. For larger size hole, a reducer can be used.
    • Termination end will mate with any standard access head, such as Condulet P/N GUAB 26, Omega P/N NSB2, Ram P/N A5 or C5, or their equivalents.
    • All access heads can be fitted with termination blocks for easy connections.


    Typical Applications

    • Condenser water boxes, circulating pipe, tanks and pressure vessels.


    Features

    • CPVC housing rated to 210oF.
    • 3/4" NPT PVC short nipple pressure rated to 50 psi.
    • Four element choices to enable use in any environment.
    • Available with stud or wire end.
  • Housing Specifications

    • 3/4" IPS PVC short nipple
    • CPVC tube, 3/4" dia. x 6"


    Element Types

    • AGG: saturated gelled Ag / AgCl
    • CUG: saturated gelled Cu / CuSO4
    • AGD: dry-type Ag / AgCl
    • ZIN: 99.99% Zinc


    Terminations

    • ST: 1/4-20 thread stud
    • SW: 1' #16 AWG PVC insulated wire
    • LWnnn: nnn ft. #16 AWG PVC insulated


    Model Designation

    • Specify as EDI Model FS-xxx-yy, where xxx = element type and yy = termination type.

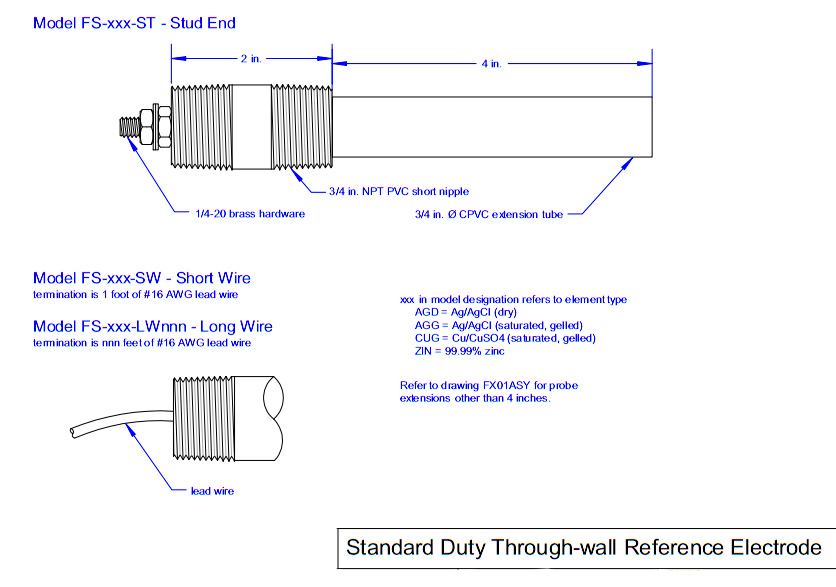

  • FS diagram
