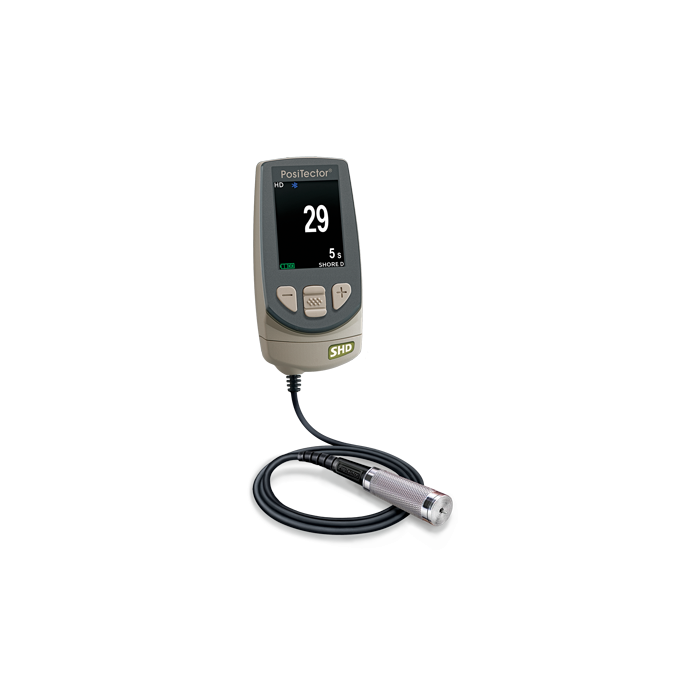

PosiTector SHD Shore Hardness Durometers by DeFelsko

SKU#: PosiTector SHD
PosiTector® SHD Shore Hardness Durometers for the indentation hardness of non-metallic materials

Grouped Product items

PosiTector SHD Shore A, Standard Body and Probe

$890.00

PosiTector SHD Shore A, Advanced Body and Probe

$1,355.00

PosiTector SHD Shore A, Probe Only

$565.00

PosiTector SHD Shore D, Standard Body and Probe

$890.00

PosiTector SHD Shore D, Advanced Body and Probe

$1,355.00

PosiTector SHD Shore D, Probe Only

$565.00

SHD Durometer Test Stand for Shore A

$1,325.00

SHD Durometer Test Stand for Shore D

$1,325.00

Shore A 30 Test Block For PosiTector SHD

$25.00

Shore A 50 Test Block For PosiTector SHD

$25.00

Shore A 75 Test Block For PosiTector SHD

$25.00

Shore D 25 Test Block For PosiTector SHD

$25.00

Shore D 46 Test Block For PosiTector SHD

$25.00

Shore D 75 Test Block For PosiTector SHD

$25.00

Simple

Easy-to-read digital display

User-adjustable measurement time with onscreen countdown to conform to national and international standards

Enhanced one-handed menu navigation

RESET feature instantly restores factory settings

Durable

Solvent, acid, oil, water and dust resistant - weatherproof

Shock-absorbing, protective rubber holster with belt clip

Hardened steel indentor

Two year warranty on gage body AND probe
Accurate

Certificate of Calibration showing traceability to NIST included (Long Form)

Auto Ignore mode disregards hardness readings below 20 and above 90 per international standards

Hi-RES mode increases displayed resolution to 0.1

Includes test block to verify operation

Conforms to ASTM D2240, ISO 868/7267/7619 and DIN 53505

Versatile

High contrast backlit display for bright or dark environments

Selectable display languages

Flip display enables right-side-up viewing

Uses alkaline or rechargeable batteries (built-in charger)
Powerful

Continually displays/updates average, standard deviation, min/max hardness and number of readings while measuring

HiLo alarm audibly and visibly alerts when measurements exceed user-specified limits

Sealed USB Port for fast, simple connection to a PC and to supply continuous power. USB cable included

Software Updates via web keep your gage current

Screen Capture – record and save image into USB flash memory for record keeping and review

Software Solutions for viewing, analyzing & reporting data

Every stored measurement is date and time stamped

Specifications

Measurement Range: 0 – 100

Accuracy: ± 1

Resolution: 0.1

Body Size: 137 x 61 x 28 mm (5.4" x 2.4" x 1.1")

Weight: 185 g (6.5 oz.) without batteries

All gages come complete with test block, protective rubber holster with belt clip, wrist strap, 3 AAA alkaline batteries, instructions, nylon carrying case with shoulder strap, Long Form Certificate of Calibration traceable to NIST, protective lens shield, USB cable, PosiSoft Software, two (2) year warranty.
Standard Models

Includes ALL features as shown on left plus...

Storage of 250 readings per probe—stored readings can be viewed or downloaded

Advanced Models

Includes ALL features as shown on left plus...

Storage of 100,000 readings from multiple probes in up to 1,000 batches and sub-batches

Auto Sub-Batch – automatically create sub-batches after the required number of readings are taken

Live graphing of measurement data

Batch/Reading annotation—add notes and change batch names with onscreen QWERTY keyboard

Store thickness, profile, environmental, wall thickness and hardness measurements in individual batches

WiFi technology wirelessly synchronizes with PosiSoft.net and downloads software updates

Bluetooth 4.0 Technology for data transfer to a mobile device running the PosiTector App or optional portable printer. BLE API available for integration into third-party software.

Integrate with third-party software, drones, ROVs, PLCs, and robotic devices using several industry-standard communication protocols
See probe compatibility chart for more information.
