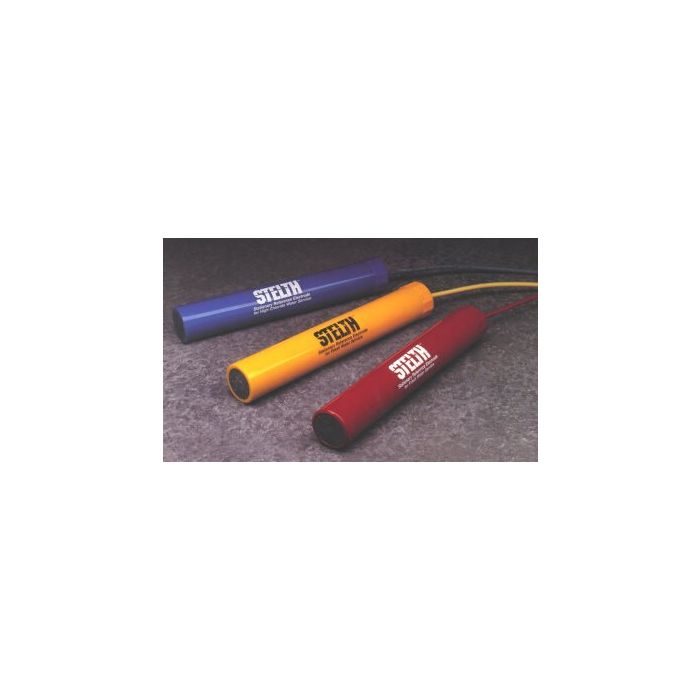

Stelth 1 Reference Electrodes for Submersion by Borin Mfg.
Stationary Reference Electrodes for Fresh Water or High Chloride Water Service
Features
Minimum 20-year service life.
Available in three models: Cu-CuSO4, Ag-AGCl, Zn-ZnSO4.
Color coded for quick and easy identification.
Special porous ceramic contact plugs allow removal and re-entry into liquid without damaging the electrode. The unit is thus reusable and may be reactivated (after use) for a period of up to one year.
Technologically advanced "ion trap" prevents contamination of Cu-CuSO4 electrolyte.
High-impact resistant plastic electrode case will not deteriorate even in highly corrosive environments.
Complete installation instructions included.
Models
Stelth ModelSRE-002-CFY
Copper-Copper Sulfate (Cu-CuSO4) for Fresh Water Service
Size: 1" (25.4 mm) diameter x 8" (203 mm) long high impact resistant yellow plastic electrode case.
Lead Wire: 20' (6.1 m) of #14 RHH-RHW yellow wire.
Stability: 10 millivolts with 3.0 microamp load.
Temperature Range: +32oF to +135oF (0oC to +57.2oC).
Stelth ModelSRE-004-SFB
Silver-Silver Chloride (Ag-AgCl) for High Chloride Water Service
Size: 1" (25.4 mm) diameter x 8" (203 mm) long high impact resistant blue plastic electrode case.
Lead Wire: 20' (6.1 m) of #14 RHH-RHW blue wire.
Stability: 10 millivolts with 3.0 microamp load.
Temperature Range: +32oF to +135oF (0oC to +57.2oC).
Stelth ModelSRE-006-ZFR
Zinc-Zinc Sulfate (Zn-ZnSO4) for Fresh Water Service
Size: 1" (25.4 mm) diameter x 8" (203 mm) long high impact resistant red plastic electrode case.
Lead Wire: 20' (6.1 m) of #14 RHH-RHW red wire.
Stability: 10 millivolts with 3.0 microamp load.
Temperature Range: +32oF to +135oF (0oC to +57.2oC).
Features
Minimum 20-year service life.
Available in three models: Cu-CuSO4, Ag-AGCl, Zn-ZnSO4.
Color coded for quick and easy identification.
Special porous ceramic contact plugs allow removal and re-entry into liquid without damaging the electrode. The unit is thus reusable and may be reactivated (after use) for a period of up to one year.
Technologically advanced "ion trap" prevents contamination of Cu-CuSO4 electrolyte.
High-impact resistant plastic electrode case will not deteriorate even in highly corrosive environments.
Complete installation instructions included.
Models
Stelth ModelSRE-002-CFY
Copper-Copper Sulfate (Cu-CuSO4) for Fresh Water Service
Size: 1" (25.4 mm) diameter x 8" (203 mm) long high impact resistant yellow plastic electrode case.
Lead Wire: 20' (6.1 m) of #14 RHH-RHW yellow wire.
Stability: 10 millivolts with 3.0 microamp load.
Temperature Range: +32oF to +135oF (0oC to +57.2oC).
Stelth ModelSRE-004-SFB
Silver-Silver Chloride (Ag-AgCl) for High Chloride Water Service
Size: 1" (25.4 mm) diameter x 8" (203 mm) long high impact resistant blue plastic electrode case.
Lead Wire: 20' (6.1 m) of #14 RHH-RHW blue wire.
Stability: 10 millivolts with 3.0 microamp load.
Temperature Range: +32oF to +135oF (0oC to +57.2oC).
Stelth ModelSRE-006-ZFR
Zinc-Zinc Sulfate (Zn-ZnSO4) for Fresh Water Service
Size: 1" (25.4 mm) diameter x 8" (203 mm) long high impact resistant red plastic electrode case.
Lead Wire: 20' (6.1 m) of #14 RHH-RHW red wire.
Stability: 10 millivolts with 3.0 microamp load.
Temperature Range: +32oF to +135oF (0oC to +57.2oC).
