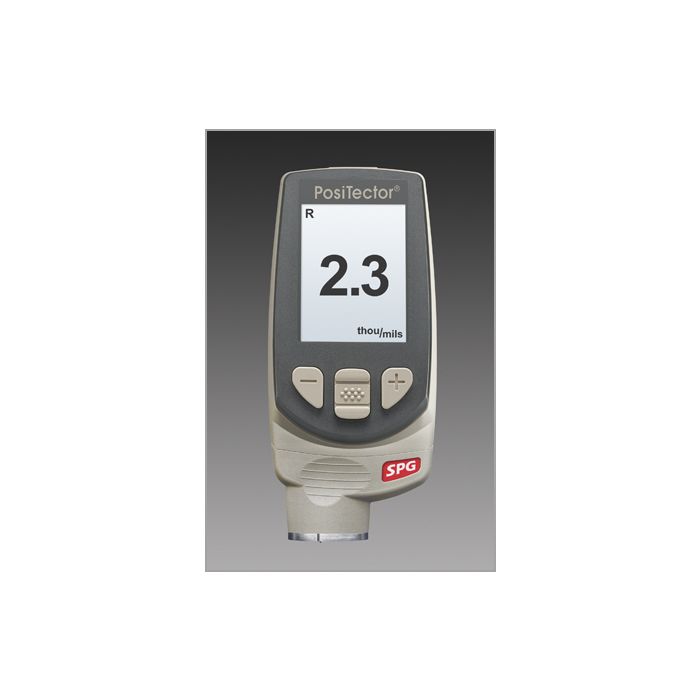

PosiTector SPG Surface Profile Gauge with Integral Probe by DeFelsko

SKU#: PosiTector-SPG
The PosiTector SPG Surface Profile Gage measures and records peak to valley surface profile heights.

Grouped Product items

$735.00
$1,200.00
  • Description

    The PosiTector SPG Surface Profile Gage measures and records peak to valley surface profile heights. Conforms to ASTM D4417-B, AS 3894.5-C (with optional 30° tip angle), U.S. Navy NSI 009-32, SANS 5772 and others

    all gages feature  Simple

    • Fast measurement rate of over 50 readings per minute - ideal for quickly and accurately measuring surface profile over large surface areas
    • Large, easy-to-read, graphics LCD
    • Enhanced one-handed menu navigation
    • RESET feature instantly restores factory settings

      Durable

    • Solvent, acid, oil, water and dust resistant – weatherproof
    • 60º angle tungsten carbide tip for long life and continuous accuracy - field replaceable
    • Rugged, outdoor/indoor instrument - ideal for field or shop use
    • Shock-absorbing, protective rubber holster with belt clipand wrist strap
    • Two (2) year warranty on body and probe

      Accurate

    • Built-in temperature compensation ensures measurement accuracy
    • Certificate of Calibration showing traceability to NIST included
    • Glass Zero Plate and metal shim included
    • Conforms to national and international standards including ISO and ASTM

      Versatile

    • Gage body universally accepts all PosiTector SPG(surface profile), DPM (environmental) and 6000 (coating thickness) and UTG (ultrasonic thickness) probes
    • 30º angle interchangeable probe tip available for special surface profile applications
    • Selectable display languages
    • Hi Contrast backlit display for bright or dark environments
    • Flip display enables right-side-up viewing
    • Uses alkaline or rechargeable batteries (built-in charger)

      Powerful

    • Continually displays/updates average, standard deviation, min/max thickness and number of surface profile readings
    • HiLo alarm audibly and visibly alerts when measurements exceed user-specified limits
    • Every stored measurement is date and time stamped
    • Screen Capture -record and save image into USB flash memory for record keeping and review
    • USB port for fast, simple connection to a PC and to supply continuous power. USB cable included
    • PosiSoft solutions for viewing, analyzing & reporting data:
      • PosiSoft USB Drive -stored readings and graphs can be accessed using universal PC/ Mac web browsers or file explorers. No software required
      • PosiSoft.net account - a free web-based application offering secure storage of thickness readings
      • PosiSoft 3.0 - desktop software (PC/Mac) for downloading, viewing, printing and storing measurement data. Available as a free download.
      • PosiSoft Mobile -(Advanced models only) - access readings, graphs, capture photos and update notations through WiFi enabled devices such as tablets, smart phones and computers
    • Software updates via web keep your gage current



  • Ordering Guide

    Ordering
    Guide

    Standard Advanced
    spg std gage selection spg adv gage selection
    Order Code Order Code
    Body with Probe   SPG1 SPG3
    Probe Only   PRBSPG
    Measuring Range   0 – 500 μm (0 – 20 mils)
    Accuracy   ± (5 μm + 5%)    ± (0.2 mil + 5%)



    spg complete

    ALL GAGES COME COMPLETE with glass zero plate, metal shim, protective rubber holster with belt clip, wrist strap, 3 AAA alkaline batteries, instructions, nylon carrying case with shoulder strap, protective lens shield, Long Form Certificate of Calibration traceable to NIST, USB cable, two (2) year warranty.

    SIZE: 137 x 61 x 28 mm (5.4" x 2.4" x 1.1")

    WEIGHT: 140 g (4.9 oz.) without batteries

    CONFORMS TO: ASTM D4417-B, AS 3894.5-C (with optional 30° tip angle), U.S. Navy NSI 009-32, SANS 5772 and others
