Scotchcast #90-B1N Cable Splice Kit by 3M

SKU#: 12-20060
Fits Both Split Bolt & Crimped Conductors. #2/0 Maximum (crimp)

Description

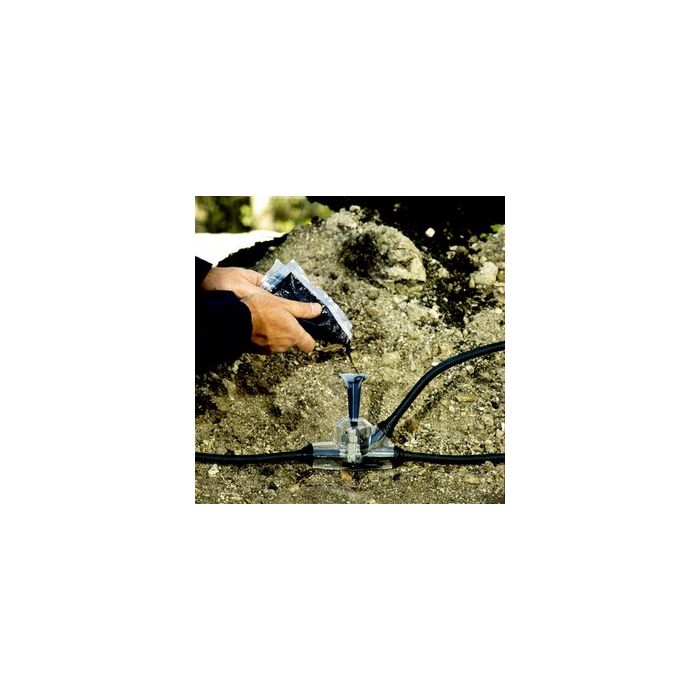

Designed for use in weather-exposed or direct-burial locations. For making tap or branch splices on unshielded,
synthetic insulated cables rated up to a maximum of 1000 volts. These kits will accommodate the following
connectors and conductor sizes:

Kit No. Cable O.D. Conductor Size Sheath Opening

90-B1 Feeder Cable
1/2" to 13/16" Split Box
1/0 WAG (max.) 3" maximum

90-B1 Branch Cable
3/8" (max.) Crimped
2/0 AWG (max.) 3" maximum

Specification

Cable Type	Power Cable
Conductor Sizes	1/0 AWG, 2/0 AWG
Crimped Maximum Conductor Sizes	2/0 AWG
Insulation O.D. Range	0.50 - 0.812 Inch
Product Type	Resin Splice
Run Cable Outside Diameter Range	0.500 to 0.812 Inch
Shielding Type	Non-Shielded
Splice Type	Resin
Split Bolt Maximum Conductor Sizes	1/0 AWG
Tap Insulation Outside Diameter	0.375 Inch
Voltage	1 kV

Description

Designed for use in weather-exposed or direct-burial locations. For making tap or branch splices on unshielded,
synthetic insulated cables rated up to a maximum of 1000 volts. These kits will accommodate the following
connectors and conductor sizes:

Kit No.	Cable O.D.	Conductor Size	Sheath Opening
90-B1	Feeder Cable 1/2" to 13/16"	Split Box 1/0 WAG (max.)	3" maximum
90-B1	Branch Cable 3/8" (max.)	Crimped 2/0 AWG (max.)	3" maximum

Specification

Cable Type	Power Cable
Conductor Sizes	1/0 AWG, 2/0 AWG
Crimped Maximum Conductor Sizes	2/0 AWG
Insulation O.D. Range	0.50 - 0.812 Inch
Product Type	Resin Splice
Run Cable Outside Diameter Range	0.500 to 0.812 Inch
Shielding Type	Non-Shielded
Splice Type	Resin
Split Bolt Maximum Conductor Sizes	1/0 AWG
Tap Insulation Outside Diameter	0.375 Inch
Voltage	1 kV
