Staperm Portable Silver-Silver Chloride Reference Electrodes GMC

SKU#: Silver Chloride Portable Salt Water Reference Electrodes
For Use in High Chloride Waters

Grouped Product items

$136.00
$120.00
$125.00
$98.00
$273.00

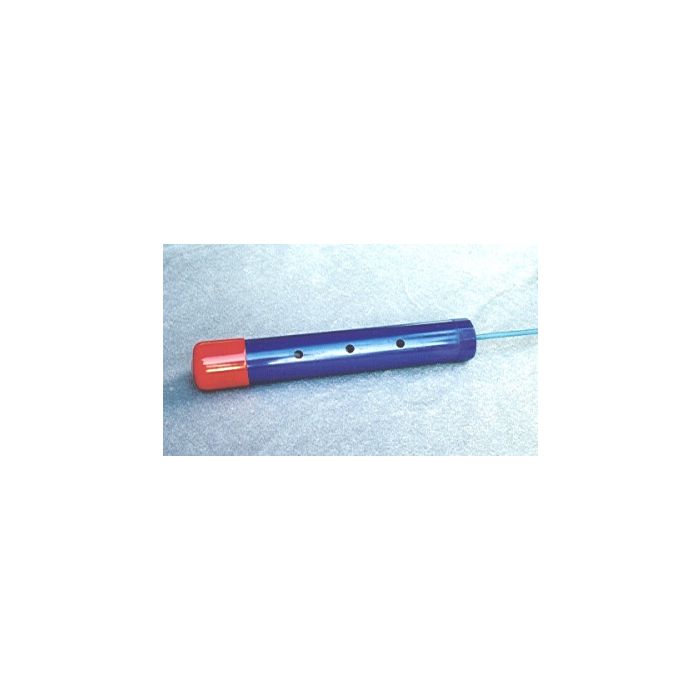

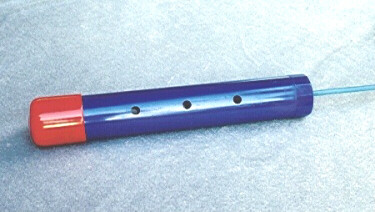

  • Model AG-4-PT1

    This portable electrode is rugged for deep water use and can be used in salt water and saturated saline water conditions such as offshore platforms, offshore pipelines and seawater docks (SSP).


    • Tapered end caps protect sealed connection and eliminate platform/dock snags.
    • Special PVC housing for streamlined attachment of electrode weights.
    • Electrodes color-coded blue for ease of cell type determination.
    • Special silver-silver chloride rod allows for calibration and chloridizing repair if needed in field prior to use.
    • Ideal for use with R.O.V. equipment.
    • Available in dual element upon request.
    • Standard weights: 1 ¼ lbs, 2 ½ lbs, 3 ¾ lbs.
    • Electrode size: 1 5/16" dia. x 9" long.





  • agpt.jpg (31367 bytes)

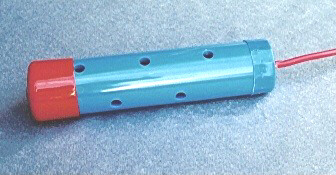

    Model AG-4-PT2

    Portable electrode designed for standard everyday use in 0 -100' water depths. Can be used in salt water and saturated saline water conditions such as offshore platforms, offshore pipelines, seawater docks (SSP) and boats or ships.

    Features

    • High-impact ABS plastic housing with 50'of RHH-RHW cable.
    • Pre-weighted.
    • Special silver - silver chloride element allows for calibration and chloridizing if needed in the field prior to use.
    • Ideal for medium to light potential work.
    • Color coded blue for ease of electrode type determination,
    • 1" dia. x 8" long.
  • agsmpt.jpg (28270 bytes)

    Model AG-4-PT3

    Portable electrode designed for light everyday use for performing potential surveys on private yachts and boats.

    Features

    • High-impact ABS plastic housing with 25’ of #14 tinned copper cable, marine grade.
    • Pre-weighted.
    • Special silver-silver chloride element allows for calibration and chloridizing repair if needed in the field prior to use.
    • Ideal for performing potential surveys on yachts and small boats.
    • Color coded light blue for ease of electrode type determination.
    • 1" dia. x 5" long
