Cathodic Protection Test Station Accessories by Tinker & Rasor
T-1 and T-3 Adapters allow retrofitting of Tinker & Rasor test stations on existing riser pipe of varying sizes. Choose from these sizes:
T-3 Adapter, 3.5" to 2.6"
T-3 Adapter, 3.5" to 1.6"
T-1 Adapter, 1.6" to 1"
The Tinker & Rasor Shock Guard fits the Model T-3 "Top Hat" test station. The Shock Guard fits on one side of the test station terminal, keeping field personnel and others away from wire connections. The Tinker & Rasor Shock Guard minimizes the risk of electrocution, and meets NACE Standard RP-01-77/4.4.4 when used with non-metallic Tinker & Rasor Banana Plugs.

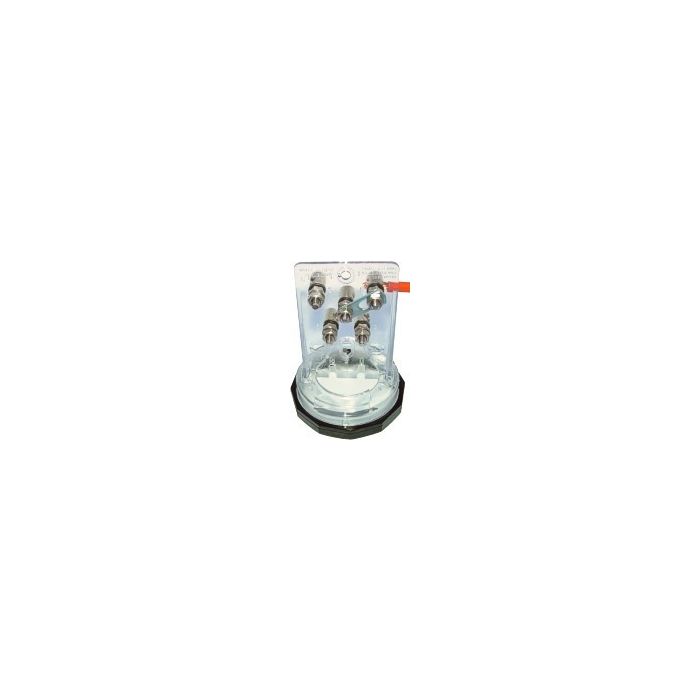

The Tinker & Rasor Model T-3 Test Station comes with standard rapid wire connection Binding Posts, as seen at right, below. There are other kinds of terminal connectors available, including Banana Plugs, as seen at right, above, with an exploded view of the Shock Guard. Terminal Connectors available include:
Standard Binding Posts
Non-metallic Banana Plugs
18-8 Stainless Steel 1/4 x 20
Non-metallic 5-way Binding posts
and many more...
"Anti-Spin" Gaskets are available for all Tinker & Rasor Test Station models. The "Anti-Spin" gasket does just that, it keeps the terminal from spinning on the riser pipe. This prevents the test station from spinning or sliding off the riser and allows superior tightening of the terminal nut.
The Model T-3 can come in many standard and custom configurations. For example, nickel-plated brass Bonding Straps are available.
The T-3 Flange Adapter allows for easy placement of T-3 Test Stations to pipe flanges, walls, wooden posts, and other areas where the installation of riser pipe is inconvenient.
Cathodic Protection Test Station Accessories by Tinker & Rasor
T-1 and T-3 Adapters allow retrofitting of Tinker & Rasor test stations on existing riser pipe of varying sizes. Choose from these sizes:
T-3 Adapter, 3.5" to 2.6"
T-3 Adapter, 3.5" to 1.6"
T-1 Adapter, 1.6" to 1"
The Tinker & Rasor Shock Guard fits the Model T-3 "Top Hat" test station. The Shock Guard fits on one side of the test station terminal, keeping field personnel and others away from wire connections. The Tinker & Rasor Shock Guard minimizes the risk of electrocution, and meets NACE Standard RP-01-77/4.4.4 when used with non-metallic Tinker & Rasor Banana Plugs.
The Tinker & Rasor Model T-3 Test Station comes with standard rapid wire connection Binding Posts, as seen at right, below. There are other kinds of terminal connectors available, including Banana Plugs, as seen at right, above, with an exploded view of the Shock Guard. Terminal Connectors available include:
Standard Binding Posts
Non-metallic Banana Plugs
18-8 Stainless Steel 1/4 x 20
Non-metallic 5-way Binding posts
and many more...
"Anti-Spin" Gaskets are available for all Tinker & Rasor Test Station models. The "Anti-Spin" gasket does just that, it keeps the terminal from spinning on the riser pipe. This prevents the test station from spinning or sliding off the riser and allows superior tightening of the terminal nut.
The Model T-3 can come in many standard and custom configurations. For example, nickel-plated brass Bonding Straps are available.
The T-3 Flange Adapter allows for easy placement of T-3 Test Stations to pipe flanges, walls, wooden posts, and other areas where the installation of riser pipe is inconvenient.
