Cell-Cast Hole® Forming Disks by Link-Seal

Producing large diameter holes in poured concrete structures.

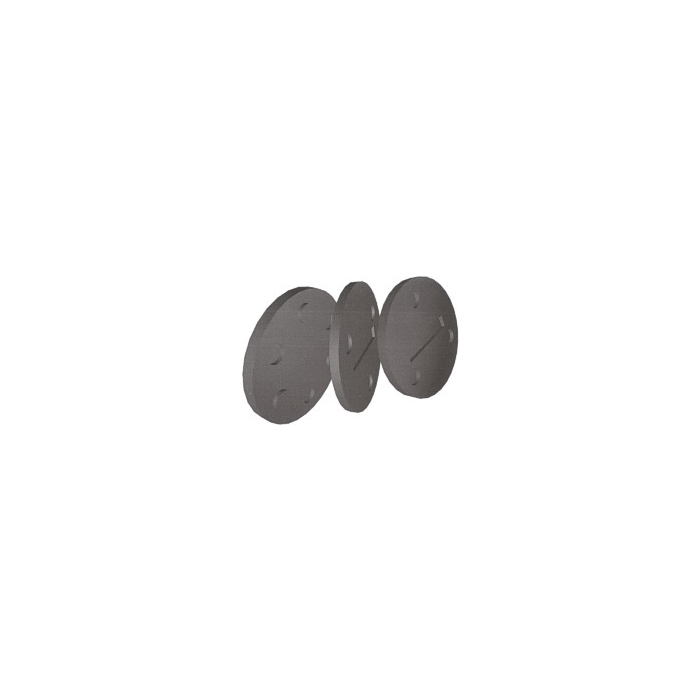

Cell-Cast^® Hole Forming Disks are designed to produce large diameter holes in poured concrete structures.

Molded from non-conductive plastic, Cell-Cast^® Disks are lightweight and may be installed by one construction worker. They are available in a wide variety of diameters. Disks are either 3" or 4" thick, allowing one to form a hole in 3" walls or thicker (except 5"). Typical applications include:

Penetration holes for large diameter pipe.
Access openings in concrete vaults.
Architectural accents in contemporary structures.

Features

Economy
Reduces material costs by 30% to 50%.
Cuts labor costs by 50% - 70%.
Minimizes freight and handling charges.
Quality
Consistently produces dimensionally accurate openings.
Sized to work with Link-Seal Modular Seals.
Avoids potential leak path between sleeve and concrete.
Installation
Lightweight - 1/8 the weight of steel pipe sleeves.
Complete assembly accomplished in minutes.
Easily installed by one construction worker.
Availability
Cell-Cast^® Disks are stocked in a variety of diameters up to 64.75" (164c m) and available for immediate delivery.
Larger sizes are available by special order.
Flexibility
Cell-Cast^® Disks are produced in 3" and 4" thicknesses and can be assembled to fit virtually any wall. For example:
- Combine two 3" cells and one 4" cell for 10" walls.
- Combine two 4" cells and one 3" cell for 11" walls.
- Combine three 4" cells for 12" walls.

Cell-Cast^®Hole Forming Disks - Model CC

Model	Hole I.D. (Inches)	3" Thickness		4" Thickness
Model	Hole I.D. (Inches)	Lbs	Kg	Lbs	Kg
CC-30	29.25	10.0	4.53	10.4	4.71
CC-32	31.13	10.8	4.89	11.2	5.08
CC-36	34.75	12.6	5.71	13.1	5.94
CC-38	37.25	13.9	6.30	14.4	6.53
CC-42	41.38	16.3	7.39	16.8	7.62
CC-44	43.75	17.7	8.02	18.3	8.30
CC-48	47.25	20.0	9.07	20.7	9.38
CC-50	50.00	22.0	9.97	22.6	10.25
CC-54	52.63	23.9	10.84	24.6	11.15
CC-56	56.00	26.5	12.02	27.3	12.38
CC-60	59.25	29.2	13.24	30.0	13.60
CC-64	62.75	32.2	14.60	33.1	15.01
CC-66	64.75	34.0	15.42	34.9	15.83

WS Steel Wall Sleeves

WS Wall Sleeves are constructed from steel and available in a wide range of diameters and lengths. They are an excellent choice for installations where the Link-Seal® Modular Seal and WS sleeve assembly would be subject to extremely high temperatures or where fire seals are specified.

Model WS (12" Length)

Model	I.D.	Lbs	Kg
WS-2-21-S-12	1.94	5.90	2.67
WS-2-15-S-12	2.07	5.53	2.51
WS-2-1/2-27-S-1 2	2.32	9.78	4.43
WS-2-1/2-20-S-12	2.47	7.91	3.58
WS-3-30-S-12	2.90	12.60	5.71
WS-3-21-S-12	3.07	9.93	4.51
WS-3-1/2-22-S-12	3.55	11.70	5.31
WS-4-23-S-12	4.03	13.61	6.17
WS-5-25-S-12	5.05	17.91	8.12
WS-6-28-S-12	6.07	22.73	10.31
WS-6-18-S-12	6.25	14.82	6.72
WS-8-32-S-12	7.98	33.55	15.22
WS-8-18-S-12	8.25	21.94	9.95
WS-10-36-S-12	10.02	46.12	20.92
WS-10-25-S-12	10.25	33.67	15.27
WS-12-37-S-12	12.00	60.14	27.28
WS-14-37-S-12	13.25	62.04	28.14
WS-16-37-S-12	15.25	71.04	32.22
WS-18-37-S-12	17.25	79.98	36.28
WS-20-37-S-12	19.25	90.00	40.82
WS-22-37-S-12	21.25	98.00	44.45
WS-24-37-S-1 2	23.25	107.00	48.53
