Staperm Thru-Hull Reference Electrodes by GMC

Description

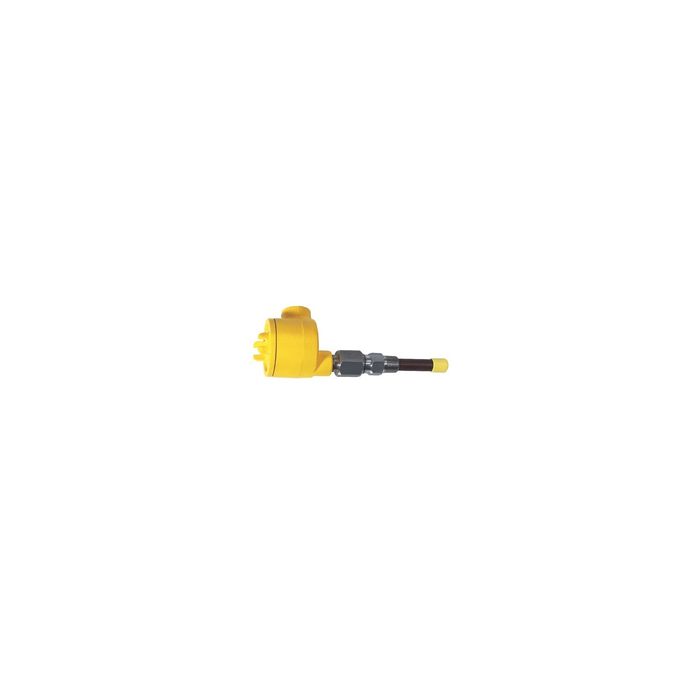

The GMC STAPERM™ thru-hull mounting assembly is designed to provide easy installation of special submersible STAPERM™ reference electrodes. Each electrode comes complete with a test lead junction box, electrode sealing system and 3/4" NPT threaded fitting for mounting directly through the structure wall. The electrode can be readily removed and reinstalled from the exterior of the vessel (not under pressure).

Specifications

• Minimum 20-year service life
• 1/2" x 6" long Teflon tube mounted in high pressure packing gland
  with 3/4 NPT.
• Pressure Rating 350 PSI
• Stability +/- 5 millivolts with 3.0 microamp load
• Temperature limit 140°F

Models

Copper Copper Sulfate CU-6-TH
NSF-61 APPROVED

Zinc Zinc Sulfate ZN-6-TH

Silver Silver Chloride AG-6-TH
